Cellular Network Technologies

Cat-M1, NB-IoT, and GSM (Global System for Mobile Communications) are all cellular network technologies with distinct characteristics. GSM, the most widely used cellular standard globally, provides higher data rates compared to NB-IoT and Cat-M1 but has higher power consumption. In contrast, Cat-M1 and NB-IoT are optimized for IoT applications. Cat-M1 offers higher data rates and mobility, while NB-IoT provides ultra-low power consumption and extended coverage. The choice among GSM, Cat-M1, and NB-IoT depends on the specific requirements of the application, considering factors such as data rates, power consumption, and coverage area.

Supported Cellular Modules

The cellular network for the Meadow platform is compatible with various modules, each supporting different network operation modes. The following table describes the network operation modes supported by each module:

Modules / Network Modes Cat-M1 (LTE-M or eMTC) NB-IoT GSM/GRPS 2G GNSS
Quectel BG95-M3 ✔ ✔ ✔ ✔
Quectel M95 - - ✔ -

Hardware configuration

To setup the hardware, you could use a Skywire click adapter, which hosts NimbeLink/Skywire cellular modems (using stacking headers) to MikroElektronika development boards.

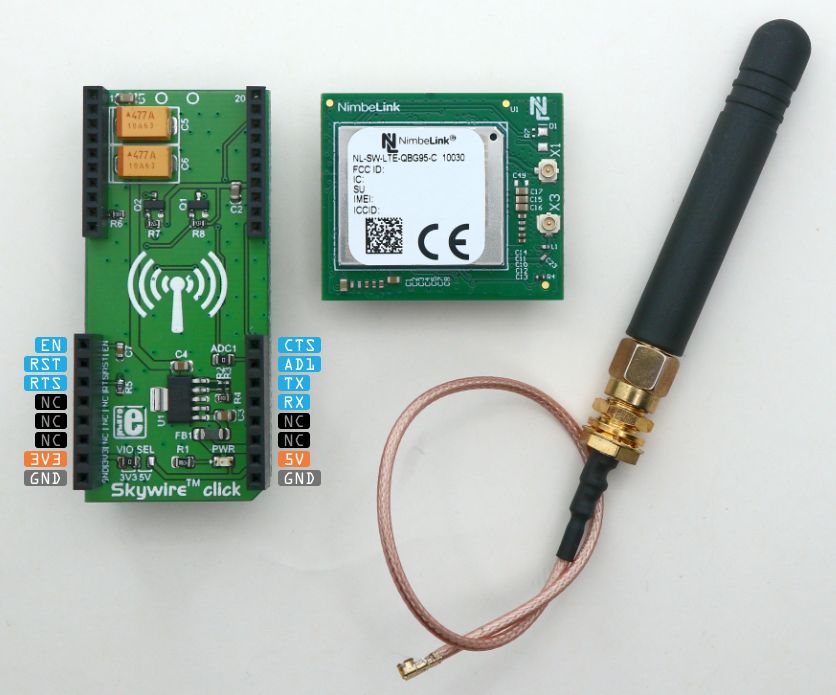

Quectel BG95M3 with NimbeLink Skywire click board

To configure the hardware, start by connecting the necessary jumpers for communication between the Meadow device and the cell module. Then make the necessary connections to supply and turn on the cell module. Finally, connect an antenna to the click board.

Using a Meadow F7v2 Feather

Quectel BG95M3 with NimbeLink Skywire click board and a Meadow F7v2 Feather

  • Connecting the serial pins (UART): If you’re using a Meadow F7v2 Feather board, you will need to connect D00 and D01 pins to the TX and RX click board pins, respectively, to establish the data communication between them.
  • Power and supply pins: Also, you need to connect the D10 pin to the EN NimbeLink Skywire click board pin. Additionally, connect the 3.3V, 5V, and GND pins on both sides of the Skywire click board. If you are using another click board for the BG95-M3 module, you need to connect the D10 pin to the equivalent power-up pin.
  • Attaching an antenna: Finally, connect an LTE antenna (Rubber ducky or Dome) with the X1 click board IPX connector, aiming for a preferred gain of 5 dBi (recommended) while ensuring a minimum gain of 2 dBi (required), and insert an M2M SIM card into the cell module.

Using a Project Lab v3

Quectel BG95M3 with NimbeLink Skywire click board and a Project Lab v3

  • A Project Lab has two mikroBUS connectors, so simply connect the Skywire click adapter on the mikroBUS connector 1 and you’re all set! Whats left is to make a few adjustments to your Meadow application to use cellular.

Quectel M95 with GSM2 click board

Quectel M95 with GSM2 click board

To configure the hardware, start by connecting the necessary jumpers for communication between the Meadow device and the cell module. Then make the necessary connections to supply and turn on the cell module. Finally, connect an antenna to the click board.

Using a Meadow F7v2 Feather

Quectel M95 with GSM2 click board and a Meadow F7v2 Feather

  • Connecting serial pins (UART): To use this module you will need to connect the Meadow F7v2 Feather D00 and D01 pins to the TX and RX click board pins, respectively, to establish the data communication between them.
  • Power-up and supply pins: Also, you need to connect the Meadow F7v2 Feather D10 pin to the PWK Quectel GSM2 click board pin, to turn on the module. Additionally, connect the 3.3V and GND pins from the Meadow F7v2 Feather to their corresponding pins on the click board. It’s recommended to provide a 5V power supply to the click board 5V and GND pins, since this module requires more energy than the LWPA modules (BG95-M3 and BG770A). If you are using another click board for the M95 module, you need to connect the D10 pin to the equivalent power-up pin.
  • Attaching an antenna: Finally, establish a connection by attaching a GSM antenna (Rubber ducky) with an SMA Plug connector, aiming for a preferred gain of 5 dBi (recommended) while ensuring a minimum gain of 2 dBi (required), and insert a SIM card into the cell module.

Using a Project Lab v3

Quectel M95 with GSM2 click board and a Project Lab v3

  • A Project Lab has two mikroBUS connectors, so simply connect the Skywire click adapter on the mikroBUS connector 1 and you’re all set! Whats left is to make a few adjustments to your Meadow application to use cellular.

Choosing a SIM Card

To enable Cat-M1 (LTE-M or eMTC) or NB-IoT network modes, a specialized M2M (Machine-to-Machine) SIM card is required, distinct from the standard SIM cards used in cellphones. However, for GSM/GPRS 2G connections, a standard SIM card can generally be used.

Enabling Cellular on your Meadow Application

Using Cellular on Meadow, you will need to do three things:

Adding a cell.config.yaml file

Create a cell.config.yaml file, set the Copy To Output property to Copy always or Copy if newer, and fill out the values under the Settings section like APN, Module, and a additional optional pins to ensure a proper connection with your internet provider. Here’s what a cell config file looks like with the required and optional fields:

Settings:
    APN: YOUR-APN         # (required) Access Point Name
    Module: BG95M3        # (required) Module model (BG770A, BG95M3 or M95)
    User: USER            # (optional) APN user
    Password: PASSWORD    # (optional) APN password
    Operator: 00000       # (optional) Carrier numeric operator code
    Mode: CATM1           # (optional) Network mode (CATM1, NBIOT or GSM)
    Interface: /dev/ttyS1 # (optional) Serial interface
                          # UART1 (COM1) = /dev/ttyS0
                          # UART4 (COM4) = /dev/ttyS1 (default),
                          # UART6 = /dev/ttyS3)
    TurnOnPin: D10        # (optional) Enable pin to turn the module on/off.
                          # Default value is Meadow Pin name D10

A few things to consider:

  • If the carrier numeric operator code (Operator) or the network mode is not specified (Mode), the module will attempt to automatically determine the optimal network based on the M2M sim card inserted and your location.
  • However, if you encounter any connectivity issues, we recommend to set the operator code and operation mode to the Operator and Mode properties. If you don’t know this information, you can use the Cell Network Scanner method that will list nearby networks in the area.
  • TurnOnPin is a pin used to turn on the module.

Specify Network Interface and reserved pins

In the meadow.config.yaml file, you need to specify DefaultInterface to Cell and specify the RX/TX serial pins and an additional pin to turn on or off Meadow the cellular module. Important: The reserved pins must be specified by MCU Pin name, not by Meadow Pin name.

  • If you’re using a Meadow Feather V2, you would connect the cellular module to D00 and D01, which are the COM4 serial pins that, according to the datasheet, the MCU Pin names are PI9 and PH13, but in the config file we can ommit the p prefix. As for the enable pin, say if you connect it to the D10 pin, the MCU pin name is C7. So the required values in the config file should look like this:
# Device specific config
Device:
    # Name of the device
    Name: F7v2Feather

    # Corresponding MCU pin names for the reserved pins
    # (COMX_RX pin, COM_TX pin, ENABLE pin)
    ReservedPins: I9;H13;C7

# Network configuration
Network:
    #  Which interface should be used?
    DefaultInterface: Cell
  • In the case that you’re using a Project Lab v3, if you look at the latest schematic and trace what pins on the Meadow Core Compute Module are connected to the microBUS 1 connector, you’ll find that are connected to pins PB15, PB14 and PA3 for the Serial RX/TX and Enable pins respectively:
# Device specific config
Device:
    # Name of the device
    Name: ProjectLabV3

    # Corresponding MCU pin names for the reserved pins
    # (COMX_RX pin, COM_TX pin, ENABLE pin)
    ReservedPins: B15;B14;A3

# Network configuration
Network:
    #  Which interface should be used?
    DefaultInterface: Cell

Handling Cell connection using a Meadow application

To check if you established a connection, you can use the meadow listen CLI command, which should return a message like this: Connection established successfully! IP address '100.69.106.222'.

You can also check the Cell connection status by accessing the IsConnected property present in the ICellNetworkAdapter, as in the following example:

var cell = Device.NetworkAdapters.Primary<ICellNetworkAdapter>();

if (cell.IsConnected)
{
    Console.WriteLine("Cell is connected!");
}
else
{
    Console.WriteLine("Cell isn't connected");
}

Therefore, you can use the NetworkConnected and NetworkDisconnected event handlers with Cell.

var cell = Device.NetworkAdapters.Primary<ICellNetworkAdapter>();

cell.NetworkConnected += CellAdapter_NetworkConnected;
cell.NetworkDisconnected += CellAdapter_NetworkDisconnected;

void CellAdapter_NetworkConnected(INetworkAdapter networkAdapter, NetworkConnectionEventArgs e)
{
    Resolver.Log.Info("Cell network connected!");
}

void CellAdapter_NetworkDisconnected(INetworkAdapter networkAdapter)
{
    Resolver.Log.Info("Cell network disconnected!");
}

Getting module IMEI

You can get some extra information about the connection and the module, such as the Cell Signal Quality (CSQ), and the International Mobile Equipment Identity (IMEI).

var cell = Device.NetworkAdapters.Primary<ICellNetworkAdapter>();

cell.NetworkConnected += CellAdapter_NetworkConnected;

void CellAdapter_NetworkConnected(INetworkAdapter networkAdapter, INetworkAdapter networkAdapter)
{
    Resolver.Log.Info("Cell network connected!");

    ICellNetworkAdapter cellAdapter = networkAdapter as ICellNetworkAdapter;
    if (cellAdapter != null)
    {
        Console.WriteLine("Cell CSQ: " + cellAdapter.Csq);
        Console.WriteLine("Cell IMEI: " + cellAdapter.Imei);
    }
}

Notes: Before using the mentioned properties, ensure a successful connection has been established. The Csq property returns a static value (0-31) representing the signal quality obtained on the connection.

Fetching Cell Signal Quality

It’s important to note that the Csq property returns a cached value obtained from the connection, then to retrieve the most up-to-date CSQ (Cellular Signal Quality), you should utilize the GetSignalQuality method, as illustrated in the following example:

var cell = Device.NetworkAdapters.Primary<ICellNetworkAdapter>();

double csq  = cellAdapter.GetSignalQuality();
Console.WriteLine("Cell Signal Quality: " + csq);

Notes: To convert the CSQ value to dBm, you need to use the formula: dBm = -113 + CSQ * 2 (where CSQ is the returned value). You may experience disconnection from the cellular network for a brief period while the module gets the signal quality, so we suggest to avoid calling this method frequently to ensure a seamless user experience.

Using GNSS with cellular modules

Some cellular modules, such as the BG95-M3, offer support for GNSS functionalities. As illustrated in the following example, you can define an interval between the position fixes, as well as select which kind of NMEA sentence should be retrieved, by specifying it in an IGnssResult array:

using Meadow.Foundation.Sensors.Location.Gnss;
using Meadow.Peripherals.Sensors.Location.Gnss;
using Meadow.Foundation.Sensors.Gnss;
...
    void ProcessGnssPosition(object sender, IGnssResult location)
    {
        Resolver.Log.Info("*********************************************");
        Resolver.Log.Info(location.ToString());
        Resolver.Log.Info("*********************************************");
    }
...
    IGnssResult[] resultTypes = new IGnssResult[]
    {
        new GnssPositionInfo(),
        new ActiveSatellites(),
        new CourseOverGround(),
        new SatellitesInView(new Satellite[0])
    };

    ICellNetworkAdapter cell = networkAdapter as ICellNetworkAdapter;

    var bg95M3 = new Bg95M3(cellAdapter, TimeSpan.FromMinutes(30), resultTypes);

    bg95M3.GnssDataReceived += ProcessGnssPosition;

    bg95M3.StartUpdating();

For a more comprehensive example, you can refer to the BG95-M3 GNSS sample available in the Meadow.Foundation repository.

GNSS Hardware Setup

When utilizing a Quectel BG95-M3 NimbeLink Skywire click board, you can follow the same setup instructions as for the cellular connection. Additionally, ensure you attach a GPS antenna to the X3 IPX connector to enable your cellular module to obtain position fixes.

Notes: Due to a hardware limitation of this board, concurrent use of GNSS and Cellular functionality is not possible. Consequently, you may experience disconnection from the cellular network for a brief period while the module acquires a position fix. It is advisable to avoid using very short time intervals between obtaining position fixes for a seamless user experience.

Troubleshooting

Scanning Cell networks

To connect using Cell, you can omit the operator code in cell.config.yaml and then the module will try to find an operator automatically. However, if you know the carrier code, you can ensure that you are connecting to the right network, connecting faster and more reliably. To find out the carrier code, you can use the Cell network scanner as in the following example:

using Meadow.Networking;
...

var cell = Device.NetworkAdapters.Primary<ICellNetworkAdapter>();

try
{
    CellNetwork[] availableNetworks = cell.ScanForAvailableNetworks();

    foreach (CellNetwork network in availableNetworks)
    {
        Console.WriteLine($"Network Status: {network.Status}, Operator Name: {network.Name}, Operator: {network.Operator}, Operator Code: {network.Code}, Mode: {network.Mode}");
    }
}
catch (Exception ex)
{
    Console.WriteLine("An error occurred: " + ex.Message);
}

Notes: Some modules, such as the BG95-M3, memorize the last network mode used and consider it during scanning. For example, if you previously connected to an NB-IoT network, the scanner may return only the available NB-IoT networks. If you want to view available CAT-M1 networks, begin by connecting to this network initially, allowing the module to set CAT-M1 as network mode. Afterward, follow the steps mentioned above to initiate the scanner successfully.

Getting Cellular network connection logs

The cellular network connection logs might be helpful for users’ troubleshooting. This raw data often holds valuable clues to help pinpoint and fix errors or connectivity issues. The following example will show how to get the cellular module AT commands output:

using Meadow.Networking;
...

var cell = Device.NetworkAdapters.Primary<ICellNetworkAdapter>();

while (!cell.IsConnected)
{
    await Task.Delay(10000);
    Console.WriteLine($"Cell AT commands output: {cell.AtCmdsOutput}");
}



These docs are open source. If you find an issue, please file a bug, or send us a pull request. And if you want to contribute, we'd love that too!
