Introduction

Pulse-Width-Modulation is a way of controlling voltage digitally to emulate an analog signal. By turning a digital output ON and OFF very rapidly, an intermediate average output voltage can be achieved:

Illustration of a PWM signal changing between 0V and 3.3V at regular intervals
Illustration of a PWM signal changing between 0V and 3.3V at regular intervals

Although PWM is a modulation technique that can be used for communication, it’s most often used to:

  • Limit the voltage being supplied to a device.
  • Vary the output of LEDs.
  • Control motors such as servos.

A PWM signal generated by a Meadow is a square wave that can be described by two key parameters known as the duty cycle and frequency.

Duty Cycle

The duty cycle describes the percentage of time the signal is ON/HIGH, and the average output voltage is directly tied to this parameter. Consider the following wave with a duty cycle of 0.5 (50%):

![Illustration of a PWM signal at 50% duty cycle between 0V and 3.3V, averaging half that voltage (1.6V)]
![Illustration of a PWM signal at 50% duty cycle between 0V and 3.3V, averaging half that voltage (1.6V)]

In the above diagram, the signal is ON/HIGH half of the time, and OFF/LOW the other half. The average voltage output is therefore 1.6V, since 3.3V * 0.5 = 1.6V.

If the duty cycle were lowered to 25% (0.25), then the average voltage output would also be lowered:

![Illustration of a PWM signal at 25% duty cycle between 0V and 3.3V, averaging one quarter that voltage (0.8V)]
![Illustration of a PWM signal at 25% duty cycle between 0V and 3.3V, averaging one quarter that voltage (0.8V)]

In this case, the average voltage output would be around 0.8V, since 3.3V * 0.25 = 0.825V

Frequency

Note that in both cases, the frequency is the same; the rising edges of the signal are aligned to the same point in time.

So the frequency is the same but the duty cycle is different.

However, for a higher resolution signal, the frequency can be increased while keeping the same duty cycle. Consider the following PWM with a 50% duty cycle but a frequency twice as high as the previous signals:

Illustration of a PWM signal at 50% duty cycle between 0V and 3.3V, but twice the frequency, still averaging one half that voltage (1.6V)
Illustration of a PWM signal at 50% duty cycle between 0V and 3.3V, but twice the frequency, still averaging one half that voltage (1.6V)

In this case, the signal is cycling ON/OFF twice as fast as the 50% cycle before, but still providing the same average voltage output.

Higher frequencies create smoother signals, and are required in some cases. For instance, when using a PWM signal to control the brightness of an LED, a frequency of at least 60Hz (60 cycles per second) is required because humans will notice a flicker in frequencies below that.

Signal Generation

PWM signals can be generated via hardware (on the microcontroller) as well as via software. However, except for very slow frequencies, the hardware PWM generator should be used, as it doesn’t cause any load on the processor.

PWM Support in Meadow

Hardware/Pins

Nearly every digital pin on the Meadow F7 board supports PWM.

Illustration of the Meadow F7 Micro board with all pins labeled; the D00 through D15 pins support PWM
Illustration of the Meadow F7 Micro board with all pins labeled; the D00 through D15 pins support PWM

APIs

Hardware PWM

Hardware PWM signals are controlled via an IPwmPort, which is created via an IIODevice:

IPwmPort pwm = Device.CreatePwmPort(Device.Pins.D07, 100, 0.5f);
pwm.Start();

Software Generated via SoftPwmPort

For PWM frequencies below 1hz (one cycle per second), as used in industrial control systems such as HVACs, Meadow.Foundation contains a Generators.SoftPwmPort that can be created on any IDigitalOutputPort and used just like a hardware PWM port:

IDigitalOutputPort digiOut = Device.CreateDigitalOutputPort(Device.Pins.D00);
IPwmPort softPwmPort = new SoftPwmPort(digiOut);

Examples

Driving an LED

Here is a complete example of a Meadow.Foundation application that controls an LED using a PwmLed object and shows the different methods the API provides to turn it on or off, make it blink and pulse

Hardware

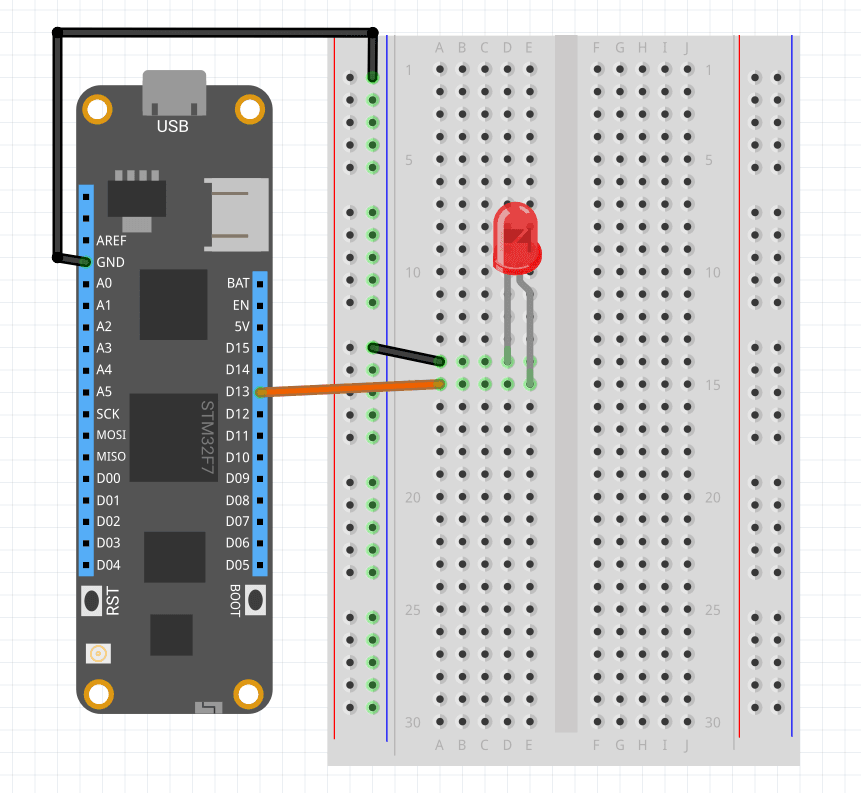

Connect a red LED with the long leg (anode) on the D13 pin and the short leg (cathode) to GND, like the following fritzing diagram:

Software

Create a Meadow project named PwmLed_Sample and copy the code so your app looks like this:

If you want to know more about PwmLed, You can check out the Meadow.Foundation.Servo Reference API

using System;
using System.Threading;
using Meadow;
using Meadow.Devices;
using Meadow.Foundation.Leds;
using System.Threading;

namespace PwmLed_Sample
{
    class MainClass
    {
        static IApp app;

        public static void Main(string[] args)
        {
            app = new PwmLedApp();
            Thread.Sleep(Timeout.Infinite);
        }
    }

    public class PwmLedApp : App<F7Micro, PwmLedApp>
    {
        PwmLed pwmLed;

        public PwmLedApp()
        {
            pwmLed = new PwmLed(Device.CreatePwmPort(Device.Pins.D02), TypicalForwardVoltage.Red),

            while (true)
            {
                pwmLed.IsOn = true;
                Thread.Sleep(500);
                pwmLed.IsOn = false;

                pwmLed.StartBlink();
                Thread.Sleep(3000);
                pwmLed.Stop();

                pwmLed.StartPulse();
                Thread.Sleep(3000);
                pwmLed.Stop();
            }
        }
    }
}

Controlling a Servo

Here is another complete example of a Meadow.Foundation application that controls a servo motor using a Servo driver available as a NuGet Package, and shows how to initialize it and use its API methods.

Hardware

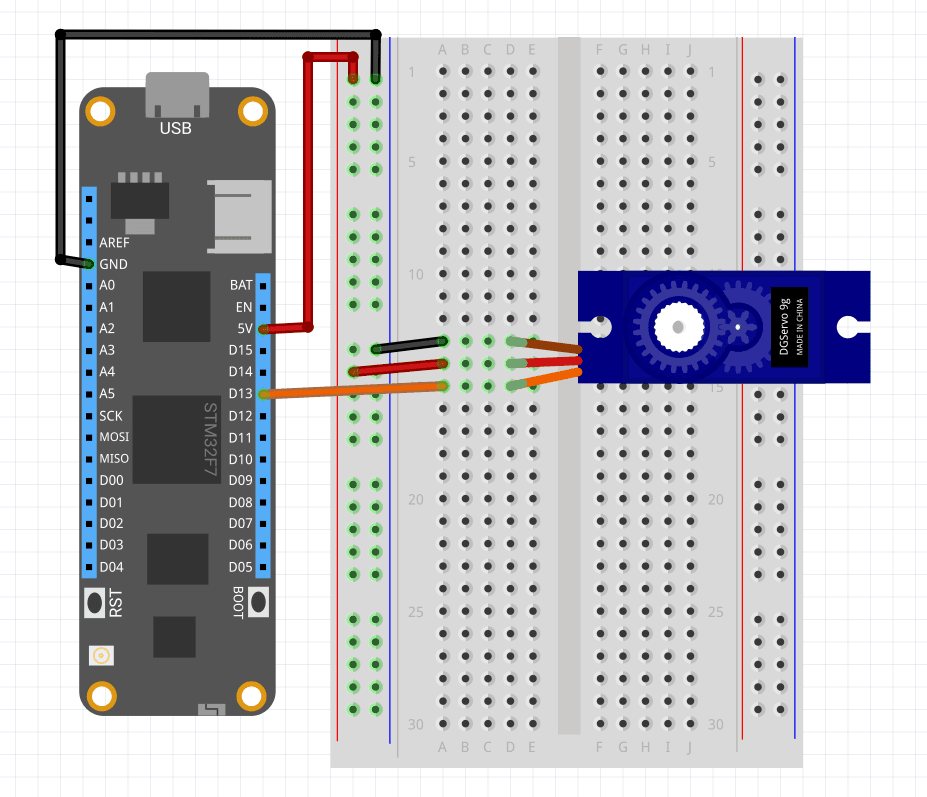

Connect your servo like the following fritzing diagram:

Servo Meadow Pin
GND GND
VCC 3V3
PWM Signal D13

Software

Create a Meadow project named Servo_Sample and paste the following code. Make sure to add the Meadow.Foundation.Servos NuGet Package so the project builds and runs.

Notice that when initializing servo, the library provides a set of NamedServoConfigs that especifies a predefined group of values such as minimum and maximum angles, minimum and maximum pulse durations and frequency. If your servo is not behaving like you would expect, you can create your own ServoConfig object and pass it in the constructor.

If you want to know more about Servo, You can check out the Meadow.Foundation.Servos Reference API

using System;
using System.Threading;
using Meadow;
using Meadow.Devices;
using Meadow.Foundation.Servos;
using System.Threading;

namespace Servo_Sample
{
    class MainClass
    {
        static IApp app;

        public static void Main(string[] args)
        {
            app = new ServoApp();
            Thread.Sleep(Timeout.Infinite);
        }
    }

    public class ServoApp : App<F7Micro, ServoApp>
    {
        readonly IPwmPort pwm;
        readonly Servo servo;

        public ServoApp()
        {
            pwm = Device.CreatePwmPort(Device.Pins.D05);
            servo = new Servo(pwm, NamedServoConfigs.Ideal180Servo);

            while(true)
            {
                if (servo.Angle <= servo.Config.MinimumAngle)
                {
                    Console.WriteLine($"Rotating to {servo.Config.MaximumAngle}");
                    servo.RotateTo(servo.Config.MaximumAngle);
                }
                else
                {
                    Console.WriteLine($"Rotating to {servo.Config.MinimumAngle}");
                    servo.RotateTo(servo.Config.MinimumAngle);
                }

                Thread.Sleep(4000);
            }
        }
    }
}
